Copper Building Wire And Cable For House & Building 300 / 500V CU / PVC / PVC IEC Standard

  • 1
  • 2

Brand Name : CTT cable

Model Number : CU/PVC/PVC NYMHY

Certification : Yes

Place of Origin : China

MOQ : 500 Meters

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 5000 meters per day

Delivery Time : Shipped in 15 days after payment. Port: Yantian port,Shenzhen,China

Packaging Details : Steel or Wooden Drum or coil

Specifications : 60227 IEC 53 / SNI 04-6629.5

Voltage : 300 / 500 V

Conductor : stranded copper

Insulation : PVC Compound (Polyvinyl chloride)

Sheath : PVC Compound (Polyvinyl chloride)

Max. conductor temperature in service : 70 ℃

Short-circuit max. conductor temperature : 160 ℃

Installation temperature : Ambient temperature under installation shall not be lower than 0℃

Minimum bending radius : D≤25mm 4D D>25mm 5D

Recommended maximum tensile stress : 50 N/mm²

Cable flexibility : Flexible

Installation : For indoor or outdoor usage and be protected inside wire tubes.

Contact Now

Copper Building Wire And Cable For House & Building 300 / 500V CU / PVC / PVC IEC Standard

Dimension& Electrical Data:

Number of Core Nominal Cross section (mm²) Overall Diameter MaximumDC resistance at20℃ (Ω/km) Minimum Insulation Resistance at70℃
(MΩxkm)		 Maximum current rating Air25℃ (A) Reference weight (kg/km)
Min.(mm) Max.(mm)
2 0.75 5.7 7.2 26 0.011 15 62.6
1 5.9 7.5 19.5 0.01 18 69.3
1.5 6.8 8.6 13.3 0.01 23 90.3
2.5 8.4 10.4 7.98 0.009 32 134.7
3 0.75 6 7.6 26 0.011 13 76.2
1 6.3 8 19.5 0.01 15 85.4
1.5 7.4 9.4 13.3 0.01 19 117
2.5 9.2 11.4 7.98 0.009 26 173.5
4 0.75 6.6 8.3 26 0.011 10 92.8
1 7.1 9 19.5 0.01 12 108.4
1.5 8.4 10.5 13.3 0.01 16 148.5
2.5 10.1 12.5 7.98 0.009 21 214.1
5 0.75 7.4 9.3 26 0.011 10 114.5
1 7.8 9.8 19.5 0.01 12 128.9
1.5 9.3 11.6 13.3 0.01 16 182.4
2.5 11.2 13.9 7.98 0.009 21 263.2

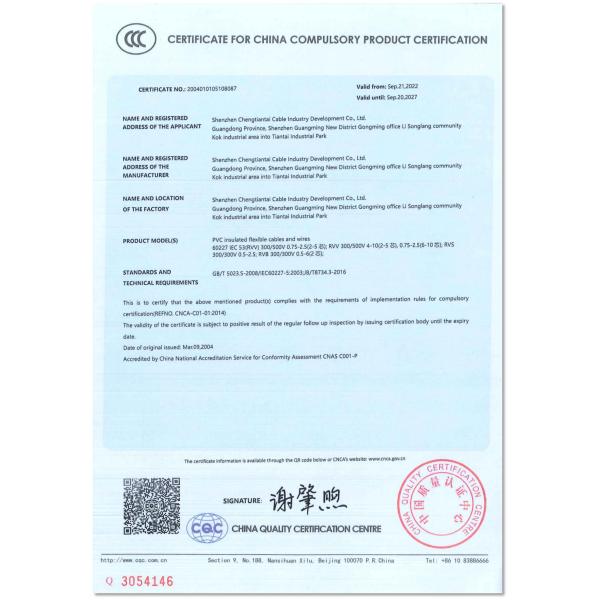

Certificates:

Copper Building Wire And Cable For House & Building 300 / 500V CU / PVC / PVC IEC Standard

Regular Package(100meter/roll):

Copper Building Wire And Cable For House & Building 300 / 500V CU / PVC / PVC IEC Standard

Drum Data:

Copper Building Wire And Cable For House & Building 300 / 500V CU / PVC / PVC IEC Standard

Copper Building Wire And Cable For House & Building 300 / 500V CU / PVC / PVC IEC Standard

Tips:
When sending an inquiry about cables or building wires,please address the specification or parameters of cables shown as follows:
Cable name: for example: Copper Building Wire And Cable For House & Building 300 / 500V CU / PVC / PVC IEC Standard.
Voltage: 300 / 500 V
Cross section: for example: 4×2.5mm² (It means there are four conductors inside this cable and the size of each conductor is 2.5 square millimeters.)
Length: for example: 1000 meters
Harbor& postcode: for example: Yantian port,Shenzhen,China. 518000
It will save you a lot of time and will also help us to prepare you an accurate quotation very quickly.Thanks!
